The equipment for construction of industrial Ethernet networks for rail systems (switches, wireless access points, 3G / 4G routers, interface converters) must fully compliant with the requirement of EN50155, which means resistance to factors such as shock, vibration, altitude, temperature, humidity and power surges.

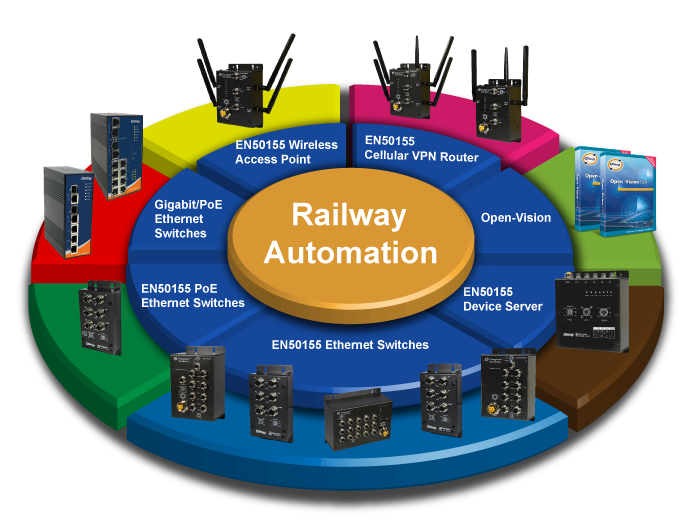

Railway Automation/EN50155 Certified
Railway transportation systems are vital in many countries and can bring rapid economic growth to an entire country. With such high importance of railway transportation systems, dependable information management of railway traffic is absolutely necessary, calling for the need of rugged network capable of handling massive real-time traffic information accurately without interruptions. It is not easy, however, to sustain reliable network service in such a high-speed moving platform of high-speed railway, since data can be affected by the train’s fast speed and associated vibrations, plus strong interferences on and off the train.
To meet the rising demand of TCN (train communication network), ORing, with industry-leading expertise of industrial networking, presents the EN50155-certified (and EN50121-certified) industrial-grade Transporter Series products for the tough applications of TCN. Thus far, ORing already has EN50155 Ethernet switches, EN50155 wireless access points, and EN50155 wireless cellular VPN routers, as the development of more EN50155 products on the way. With ORing products, automation applications on the train, along with network communications between the train and the train stations, are now simpler, much faster, more secure, and more reliable. An example of ORing industrial railway automation success story is in
Railway
Establish Robust and Secure Railway Networking Solutions
Railway transportation systems, often regarded as locomotive industry, are important in many developing and developed countries. For example, well-built highspeed railway infrastructure can bring rapid economic growth to an entire country. With such importance of railway systems, dependable safety management of railway traffic is absolutely necessary, calling for the need of rugged network capable of handling massive real-time traffic information accurately without interruptions. It is not easy, however, to sustain reliable network service in such a high-speed moving platform of high-speed railway, since data can be affected by the train’s fast speed and associated vibrations. Nevertheless, ORing, with industryleading expertise of industrial networking, has successfully provided the complete railway networking solution for the Beijing-Shanghai High-Speed Rail – also known as the Jinghu High-Speed Rail.

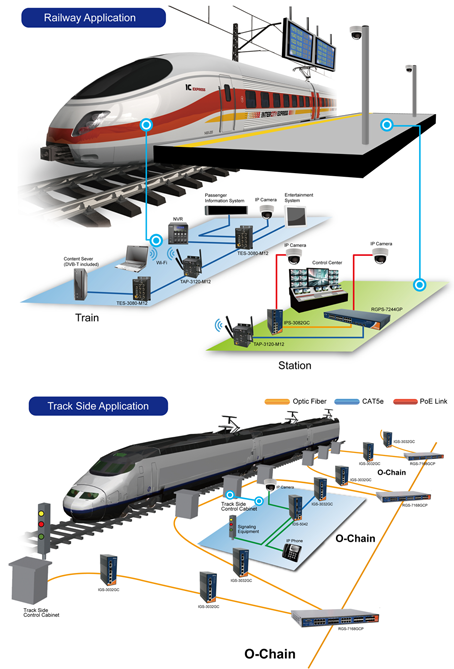

Railway Application
Railway and Rolling Stock
• Current situation of Surveillance industry
With the progress of technology, railway transportation service is upgrading and diversifying. At the same time, the traditional railway communication – CCTV – is confronting limitations. On the other hand, IP surveillance nowadays becomes the main stream of the market because of its network function, flexibility and diversified service. IP surveillance not only breaks through the traditional barriers, but also enhances railway transportation security of with the full-scale integrated system of computer, communication and other equipment.
• IP surveillance
For intelligent applications, it displays service condition and fully implements security protection. Therefore, IP surveillance successfully reduces the occurrence of dangerous condition and accidents. In the control center, staff can monitor both the passengers and equipment all the time; moreover, they can transmit the high quality data timely and storage the digital signals in Cloud Computing. Through the networking signals, IP surveillance offers entertainment services to passengers, making the trip more comfortable and suits different needs.
• The reliable ORing product- TPS-3082GT-M12-BP1
It offers 8 sets of PoE ports based on IEEE 802.3af standard with M12 connectors, each of the ports supports 15.4 Watts of 48VDC power input. And its 2 gigabit ports offer Bypass function, which help network signals passing over the Ethernet switches under the power down condition.
Success Story in Railway Application – Re Tibo Project
Location:
Partner: De Lijn 3
Project Name: ReTiBo
How many buses and trains:
Over 5000 vehicles in total. Whereof 4550 busses and +/- 450 trams.
Project Time Frame:
Cooked from 2005, started 2011 and was planned to finish by end 2013.
Product Selection: TES-3080-M12 and TAP-620-M12
The current ticket sales system Prodata, based on magnetic stripe cards, was introduced in the early '90s. This system has now been industrial and functionally obsolete. Consequently, the operational reliability and a lack of spare
parts for the system itself demand a replacing technology. This replacement will become a reality after the realization of the projects Bo and ReTi.
Bo stands for on-board computer; the project embraces the ultimate replacement of the current Prodata drivers console, the establishment of a communications network and the delivery of a number of support services that can be used by other projects.
ReTi stands for "Passenger registration and Ticketing"; the project embraces a new infrastructure for customer acquisition, sales, registration and ticketing, control, data collection and management and revenue management.

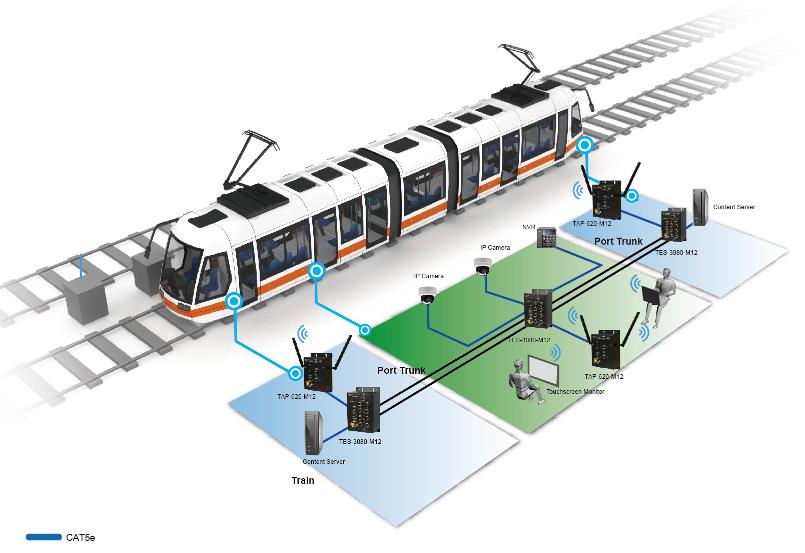

Project Structure:

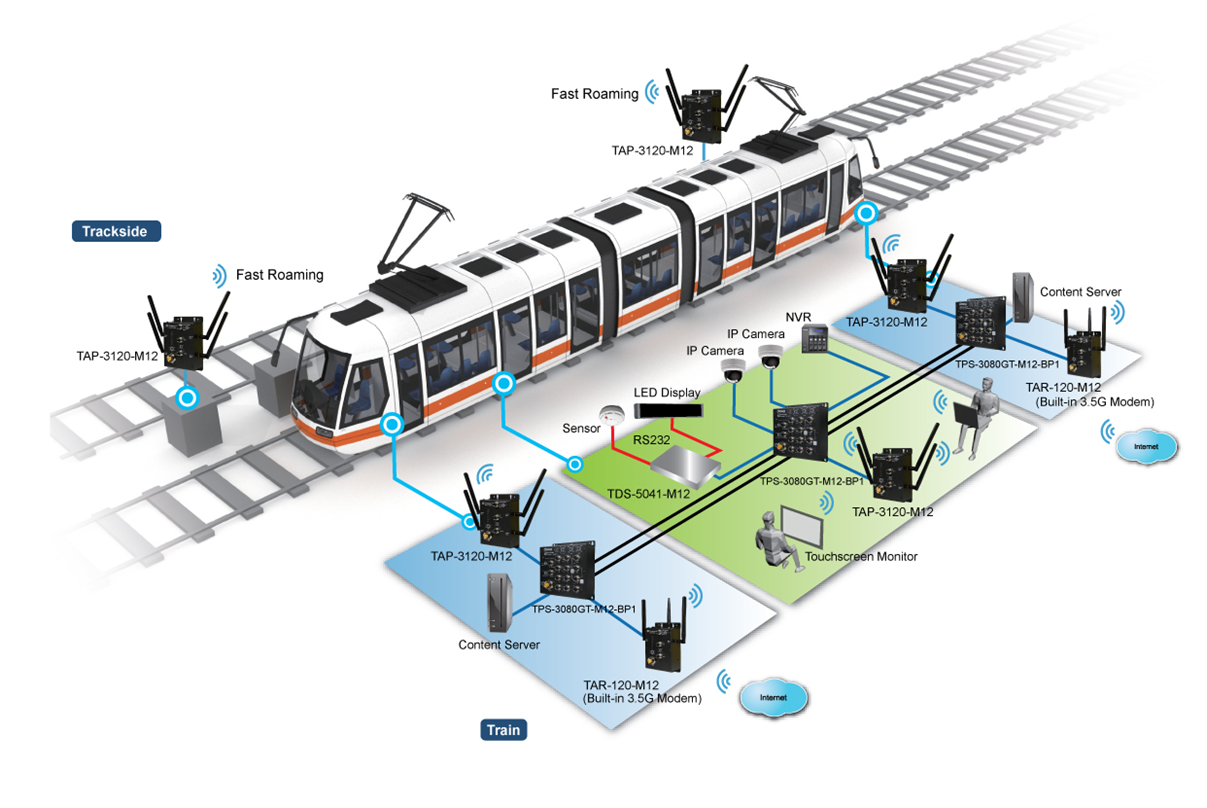

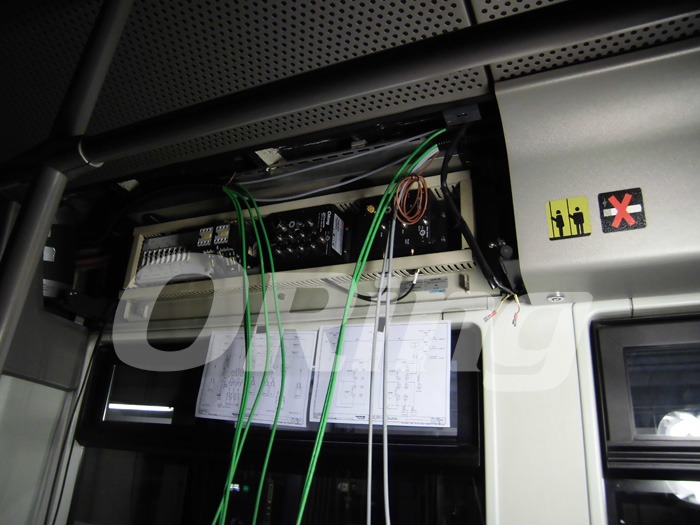

ORingTES-3080-M12in each carriage are used to link to IP cameras for video surveillance and messenger security.TAP-620-M12, ORing Wireless Access Point, enables constant inter-carriage Wi-Fi access solution.
Project Requirement & Ultimate Goal:
- Fully compliant with EN50155 certification
- Reliable and stable massive data transmission.
- Storage and exchange of data (data files, logging, etc.).
- Management of communications to, from and in the vehicle.
- Control of other systems and applications.
User of public transport in
Applications for ORing Railway Surveillance System TRA "Smiling Train" & MRT "Wenhu Line"
Background Introduction
With the increasing public awareness of the security issues on mass transportation systems, ORing Industrial Networking Corp has released series of industrial Ethernet switches that target at railway applications. Products such as TES-250-M12 and TPS-3082GT-M12-BP1 have been successfully applied to Taiwan Railway Association’s (TRA) Smiling Train as well as Taipei Mass Rapid Transit’s (MRT) Wenhu Line, providing passengers with a whole new travelling experience.
TRA’s six-star EMU800 Smiling Train has been officially launched earlier this month (2014.01.02, Taipei Times). This new commuter train purchased from Japan has not only offered economic ticket price, but shorten the travel time while considerately create cozy atmosphere and seats for passengers traveling on this train.
Known as the “smiling train,” the locomotive of the train is decorated with a yellow line resembling a crescent moon on the front. Both Smiling Train and Wenhu Line are embedded with ORing’s Ethernet applications—EN50155 Managed Ethernet Switches that are designed specifically for railway applications. These applications operate with double redundancy; O-Ring & Hardware Bypass, minimizing the recovery time for 250 machines to less than 10ms when the internet shuts off. With such advantage, ORing’s Etherent switches ensure passengers with best guarantee on commuting security.
Projects Details

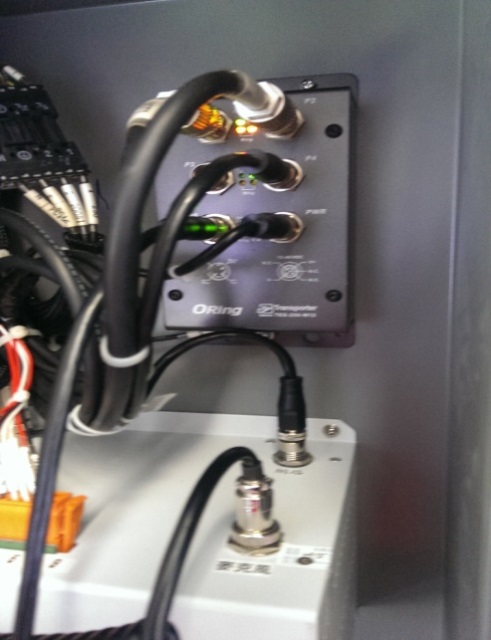

The first success story begins with TRA’s Smiling Train. Each cabin of EMU800 Smiling Train is embedded with ORing’s TES-250-M12 Light-managed Ethernet Switch. This product comes with 5 fast Ethernet ports. One of them is connected to industrial computer that operates as the media for network data transmission, controlling the digital entertainment system, Led display, VoIP phone, etc. TES-250-M12operates flexibly in wide temperature; -40~70°C, ensuring stable data transmission when the transportation system is moving at a high speed. In addition, ORing’s circular back-up system, ORing, has greatly enhanced data transmission stability by assuring no networking failure.

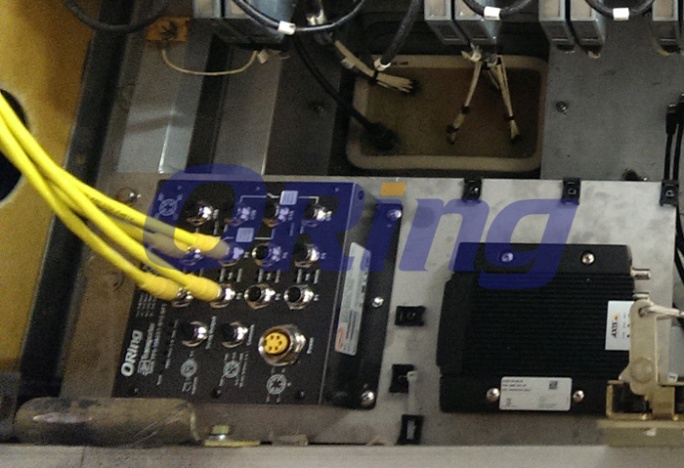

Another achievement could be found in MRT’s Wenhu Line. Started in 1996, the MRT connecting Wenshan and Neihu Districts (abbreviated as Wenhu Line) is the first MRT Line in Taipei. However, it was not until 2013 that the whole line was embedded with railway surveillance system. Aiming at this specific project, ORing Industrial Networking Corporation has embedded a managed PoE Ethernet switch—TPS-3082GT-M12-BP1—that are specifically designed for railway applications. TPS-3082GT-M12-BP1 has 8 of IEEE 802.3af PoE fast Ethernet ports with M12 interface connectors, each supporting 48VDC power supply that runs at 15.4 watt. Also, two of them (1 set) support Bypass Gigabit ports. PSE device offers power supply for devices (PDs) that work compatibly with IEEE 802.3af, including surveillance devices, wireless AP as well as IP phones, etc. Besides, TPS-3082GT-M12-BP1
has the best Ethernet redundant technology—O-Ring, minimizing the recovery time to less than 10ms while supporting double power supply. When facing a power shutdown, TPS-3082GT-M12-BP1 has two ports for bypass to avoid network failure that may occur to Ethernet switches. Each cabin of Wenhu Line is embedded with a TPS-3082GT-M12-BP1, connecting to 4 cameras and entertainment systems. With such surveillance, this product has greatly enhanced the traveling safety for both passengers and the cabin crew. Aside from the benefits in terms of functions, the employment of TPS-3082GT-M12 has saved a lot of spaces since products are embedded under the seats.
TPS-3082GT-M12 and TES-250-M12 support reliable network system, and have both equipped with EN50155 certification. The M12 connector within is anti-quake and totally caters to the railway needs. Products of T Series that are mentioned in above projects have shown ORing’s high quality and customized service. ORing is a company that considerately meets clients’ needs and always offers the most suitable products for each case. In cases of Wenhu Line and Smiling Train, ORing’s products have once again stepped further in network data transmission, and such success is regarded as a milestone for another project triumph!
Project Themes
- With EN50155 Certification
- Double Redundancy: O-Ring Circular Back-up System & Hardware Bypass Function
- Anti-quake M12 Connector, Catering to Railway Applications
- Provide Reliable Data Transmission System
HSR Interlock Control System
Shanghai–Hangzhou (HuHang) High-Speed
On October 26, 2010, the Shanghai–Hangzhou High-Speed Railway, also known as the HuHang High Speed Rail, had opened. The Shanghai–Hangzhou High-Speed Railway is

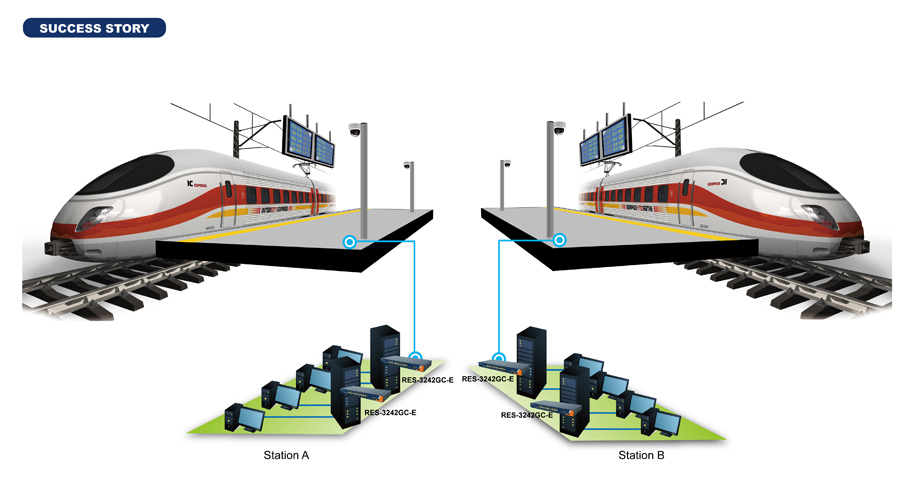

This project uses 20 ORing RES-3242GC-E Ethernet switches. Two of these ORing Ethernet switches are placed at each train station for dual-link network redundancy. Each RES-3242GC-E is connected to 2 servers for RAID 1 redundancy. Different units of RES-3242GC-E are inter-connected in 2x2-and-get-2 hardware redundancy, and the communications among all sub-stations and the main station are carried through the SDH transmission network of Ministry of Railways.
Project Overview
- ORing RES-3242GC-E – industrial-grade rack-mount managed Ethernet switch (managed by Open-Vision the powerful network management software) that handles all network traffic among servers, CLCs, and PLCs for the train station. The network is kept uninterrupted by O-Ring redundancy technology and redundant power inputs.
- Industrial-Grade Server – archives train control data. Two servers are implemented for each train station for continuous data redundancy in RAID 1 configuration.
- CLC (central logic controller) – handles control communications between each regional section and the main station
- ZLC (zone logic controller) – handles emergency control terminal and other equipment; exchanges information with the central station
Application Requirements
- Comprehensive redundancy protections – networking, power, and data
- Network Management Capability
- Endurance under tough environments
Railway ITCS Event Log System
сGE ITCS System Event Log Transmission System for Qingzang Railway in China
Qingzang Railway, also known as the Qinghai–Tibet Railway, is the first railway in
Project Overview
- ORing TAR-120 – wirelessly uploads ITCS System Event Log stored in the DVR from the train to the station’s control center (when the train enters the station).
- GE ITCS (Incremental Train Control System) – replaces old signaling device and rail track circuitry for more advanced and reliable train control
- DVR – continuously records the ITCS System Event Log
- Database Server – stores ITCS System Event Log of all trains stopping at the station
Application Requirements
- Highly secure wireless transmission
- PoE P.D. capability for the wireless access points
- Endurance under tough environments
The application of railway technology – Puyuma Express
Taiwan
Project Background
The Express is named after the aboriginal tribe in Taitung county, it means “united” in the language. The Puyuma Express represents the progression in railway transportation for the east
Project Layout
The highlight of the Puyuma Express is its networking environment which covers the entertaining function, communication and surveillance, etc. All the equipment in the train cars is based on the networking system, which not only solves the problem of wiring configuration, but also offers the massive and stable data transmission. The ORing products show its state-of-the-art quality on the Puyuma Express and achieve its goal for wireless network.

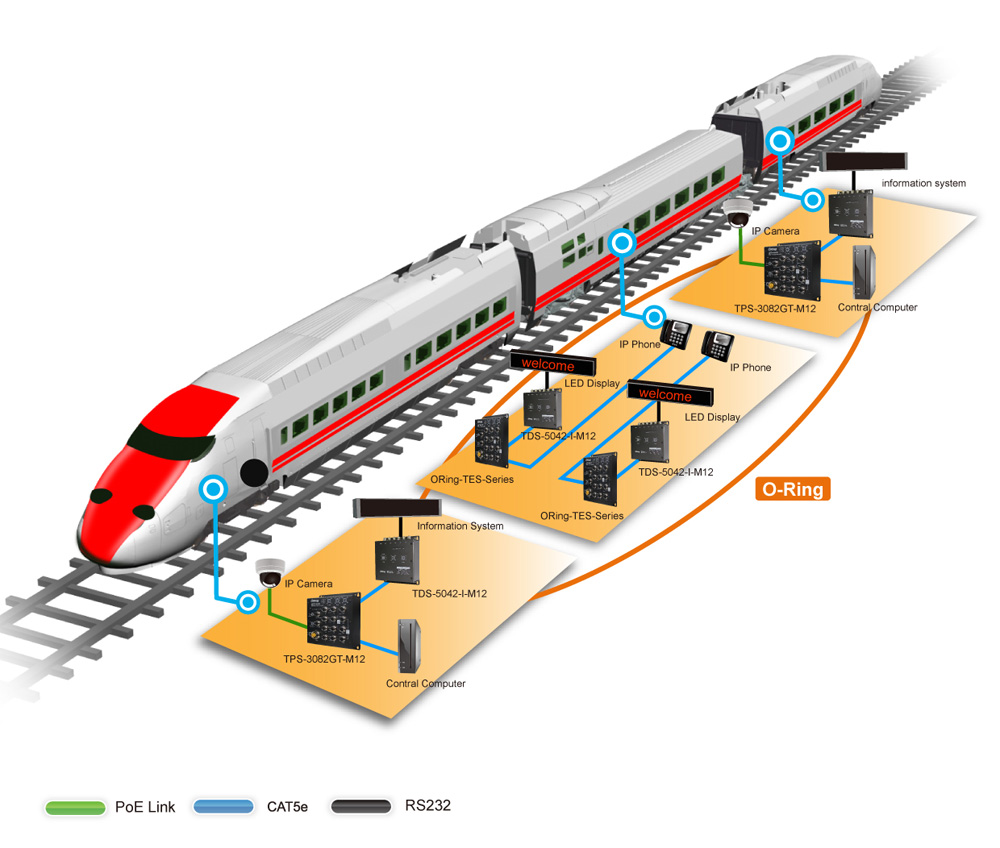

The Puyuma Express is included the front/ back locomotives and 8 train cars, there are 18 ORing T-series Ethernet Switch products, which specially design for the railway transportation. These products were deployed in the system for building the reliable networking environment. Moreover, these switches build up the prooful network redundancy, which increase the stability for the wireless network.
First of ORing’s T-series products is TPS-3082GT-M12 (customized), which were installed in the front and back locomotives, they not only link with the switches in the train cars, but also link with the advertisement displayer, sever and IP cameras on the both sides: the advertisement displayer offers the entertainment applications for the passengers; the host stands for the center of The Puyuma Express offering real time information to the control center; the IP cameras which can convey the real time video stream, assure the security for both the passengers and the staff.
For displaying information and the security concern, every train car is equipped with two of our T-series products, which is special designed for the The Puyuma Express. They ensure the well-operation of displaying, broadcasting system and IP phones. These fully customized products not only show the excellent performance of ORing quality, but also unroll ORing’s flexible and complete service for all our clients.
The second model is TPS-3082GT-M12 (customized) and T-series products, which offer the dependable and trustful networking environment. These products are fully compliant with the certification of railway requirements. ORing not only offers the reliable products which bring the data transmission to the new level, but also apply flexible and professional service suits clients’ need.
Project highlights
- Fully compliant with EN50155 certification
- 24VDC power input suits the requirement under transportation environment, making network infrastructure more flexible.
- The anti-vibration M12 connectors.
- Real time video stream for IP surveillance.
- Reliable and stable massive data transmission.
